Aperçu /Produits/Machine à découper des autocollants en vinyle/Wholesale High Quality Plotter Cutter Scriber Table Cutter Vinyl Cutting 1570*313*400mm

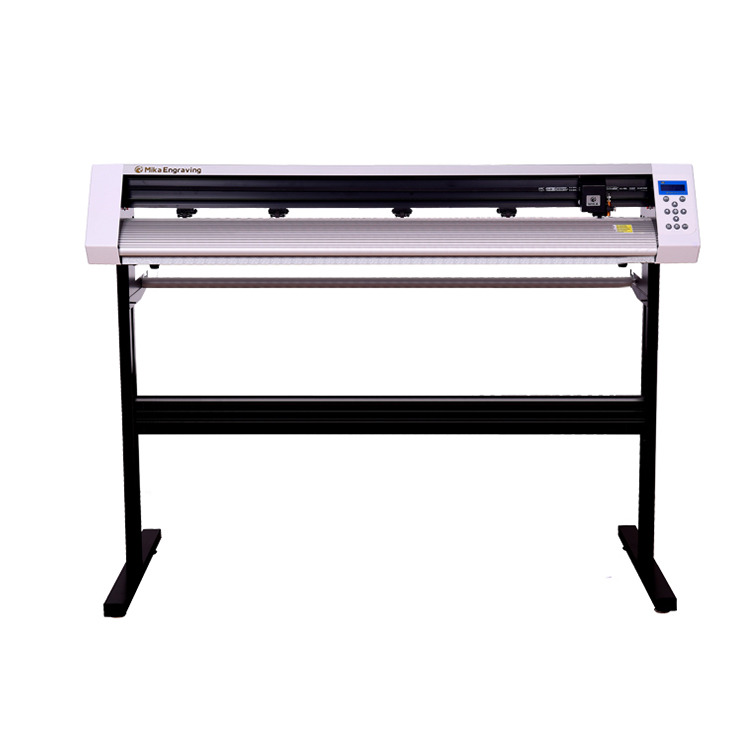

Wholesale High Quality Plotter Cutter Scriber Table Cutter Vinyl Cutting 1570*313*400mm

1 Piece
MOQ
$467.00(1 - 30 pieces) $435.00(31 - 60 pieces) $400.00(>=61 pieces)
Prix
Wholesale High Quality Plotter Cutter Scriber Table Cutter Vinyl Cutting 1570*313*400mm
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Model Number: MH1200
Voltage: AC110V /220V±10%,50Hz
Paper Feed Width: 1300mm
Cutter Pressure: 0-1000g(Digital adjustment)
Cutting Width: 1200mm
Cutting Speed: 800mm/s
Cutting Length: Infinite
Size: 1570*313*400mm
Motherboard: 256-bit smart controller
Paper feeding method: Knurled paper feed shaft
Origin positioning: Limit system, arbitrary origin setting
Maximum cutting thickness: 1mm
Mechanical accuracy: 0.05mm
Repeat accuracy: 0.05mm
Drawing instructions: DM-PL/HP-GL auto recognition
interface: Standard RS232 (serial)/USB2.0/U disk
Power consumption: <120W
Operating environment: Temperature: +5-+35, relative temperature 30%-70%
Informations de base
Model Number: MH1200
Conditions de paiement et expédition
Description de produit
Recommend Products
Product Description

product description:

The MH series plotter is a manual patrolling function added to the traditional machine. Its micro-step subdivision algorithm makes the cutting more precise and the cut surface smoother. The high-precision paper feeding system ensures that the cutting is not off-track, and the new red dot positioning function is added. As long as the picture is imported into the computer, the software automatically generates the picture outline, and manually finds the picture positioning point to cut the perfect picture. Support U disk, etc., can work offline.

Machine characteristics

1. Precision digital adjustment, with sharp corners, automatic closing compensation, using a new micro-step subdivision algorithm, so that high-speed cutting also has high cutting quality. The small characters are not deformed, the speed is fast, the power is high, and the noise is low. 2. Better communication methods, such as serial port, USB2.0, U disk, and other transmission methods are more user-friendly. 3. Manually detect mark points, COR automatically generates contour cutting (Mark realizes contour cutting function.) Set cutting function, 3. Capstan double high torque motor, micro-step subdivision drive, motor power is not reduced, 256-bit CPU, CACHE memory. 4. The knife pressure adopts the digital knife pressure adjustment method, which makes the operation more flexible. 5. Knurled shaft feeding, cutting position, paper size more freely 6. The use of high-grade aluminum alloy profiles, matte spray paint, more fashionable 7. Chinese and English operation interface, one-key switch! 8. SD card offline output, not restricted by the computer system, completely get rid of the data line, eliminate static electricity interference, and prevent doodle crashes!

Application range:

Advertising signs and signs, electronics, construction molds, clothing graphics, hot map cutting applications, contour cutting stickers, self-adhesive labels, PVC labels, small-batch hard brush die-cutting industries. The main processing materials (all kinds of printing stickers, photo paper, PVC stickers, sticky notes, etc.), one

software support:

This machine supports most of the professional carving software on the market, such as FlexiSign, Wentai, Master Carving, AI, CORELDRAW, clothing software ET, etc.; it can accept documents output by AUTOCAD/CORELDRAW/AI and other software, and it is compatible with software in similar products The best sex machine.
Specification
Touch Full-automatic camera edge-finding and correction cutting machine
Modle
MH1200
Motherboard
256-bit smart controller
control Panel
Right-side control, 12232 character LCD display, 10-key push-button silicone keyboard
drive
Capstan double high torque motor, micro-step subdivision drive
Paper feeding method
Knurled paper feed shaft
Origin positioning
Limit system, arbitrary origin setting
Targeting
4-point red dot positioning, manual point inspection, automatic contour cutting
Maximum paper width
1300mm
Maximum cutting width
1200mm
Maximum cutting speed
800mm/s
Maximum cutting length
Infinite
Maximum cutting thickness
1mm
Knife pressure
0-1000g（Digital adjustment）
Mechanical accuracy
0.05mm
Repeat accuracy
0.05mm
Types of drawing pens
Various water-based, oil-based, ball-point pens, poster pens with a diameter of 11.4mm
Drawing instructions
DM-PL/HP-GL auto recognition
interface
Standard RS232 (serial)/USB2.0/U disk
power supply
AC110V /220V±10%，50Hz
Power consumption
＜120W
Operating environment
Temperature: +5-+35, relative temperature 30%-70%
Outsourcing size
1570*313*400mm
Shipping weight
28KG
Company Profile
Certifications
Packing & Delivery
FAQ
Q1: Does the product provide samples?
-A1: Samples are not provided for large items, samples can be provided for small items, but the transportation costs are borne by you.

Q2: Can the Mika cutting plotter cut 3M reflective film for cars?
-A2: Can cut 3M reflective film, sticky notes, kraft paper, mobile phone protective film, indoor and outdoor photo paper, matte paper, clothing drawing paper and many other materials!

Q3: Receipt of the product: What should your company do if it is damaged?
-A3: This should not happen. First of all, our packaging is very strong, moisture-proof and damage-proof packaging. If there is damage, we will refund you according to the price of the damaged item!

Q4: Can you guarantee the quality of your products? How long is the warranty period?
-A4: Our products are of high quality, and are strictly inspected and tested before shipment! The warranty period is 3 years!

Q5: What are the advantages of your products? What are the advantages of your company?
-A5:Our products are widely used, the chip is powerful, the operation is simple, the work is automated, labor and time are saved, and the advanced calculation program is the best product on the market! Our company has a strong R&D team, laboratory, quality inspection room, and automated production line! We are a direct manufacturer!

Q6: How many hours do you ship after placing the order?
-A6: According to your quantity, small quantity will be issued within 48 hours, and large quantity will be issued within 1 week! Or ship according to your requirements!
